Thursday, November 26, 2009

An Easy SharePoint Lightbox Page

This is a followup to a previous post that can be found here SharePoint Lightbox. If you haven't looked it over, you should take a quick look. Anyway, a modal window is nice, but what we really need is a custom form to display in the lightbox. We don't want our users navigating around in the modal window and the oob forms weren't designed to be shown in modal windows. Here is what we're going to do, create a new page in SharePoint designer to insert a new item into a list. The new page will not include site navigation. The open buttons will preform as usual with validation and insert, but will close the lightbox when the new item has been saved. The cancel buttons will close the lightbox. Here is the final product.


Open the site in SharePoint Desinger

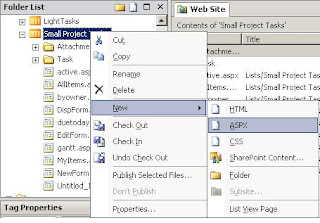

Expand the Lists folder and right click the list your interested in. Select New ASPX.










The page will open. Select Insert on the command line -> SharePoint Controls -> Custom List Form








A popup form will display the lists in the web, select the list you want, the content type, the type of form and check Show standard toolbar. Click ok.











Rename the page if you would like, untitled.aspx isn't appealing to me.

Add the following script to the header section of the new page.
<SharePoint:CssLink runat="server"/>
<SharePoint:Theme runat="server"/>
<script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.3.2/jquery.min.js"></script>

<script type="text/javascript">
$(document).ready(function(){

    $("input[id*='savebutton']").removeAttr('onclick');

    $("input[id*='savebutton']").click(function(){
        if (!PreSaveItem())
        { return false;    }
        var ctlName = $(this).attr('name');

        setTimeout(function(){
            WebForm_DoPostBackWithOptions(new WebForm_PostBackOptions(ctlName, "", true, "", "", false, true));
            setTimeout(function(){parent.$.modal.close();},1);
        },1);
    });


    $("input[id*='gobackbutton']").click(function(){
        parent.$.modal.close();
    });
});
</script>



Finally Add a Title for the new page

Select the first area of the page, the outlined box or the highlighted <td> tag. Replace that tag with this one.

 <td width="99%" nowrap=""><SharePoint:ListProperty Property="Title" runat="server"/></td>


That's it your done! This page is ready to be used in a lightbox.

3 comments:

  1. Running into an issue,
    I have two different buttons that initiate (or should initiate) two different lightboxed forms.

    However, both of them open the same form.
    For instance, there are two buttons, one creats a form to submit issues, and the other to submit tasks. They are both coded to open the appropriate (and different) *.aspx files. However, the issues button and the tasks button open the same form to submit new tasks.

    Have I missed something?

    ReplyDelete
  2. Figured it out,
    You have to rename the ModalMe script in each button so the browser can differentiate between them.

    Good luck.

    ReplyDelete
  3. I am using the modal to access the NewForm.aspx for a list from another site. This works great but was wondering how to close the modal from a different site when the user submits the form within the model.

    ReplyDelete
